TOS GRS 2-in-1 Button Kit

$9.99

Shipping calculated at checkout.

2-in-1 Button Kit   This kit provides a set of 2-in-1 arcade buttons together with a special wire...

Out of stock

Please be aware that the Coupon discount does not apply to the GRS Super Joystick, GRS Sinden Target Pro and GRS Control Panel for iiRcade.

2-in-1 Button Kit



This kit provides a set of 2-in-1 arcade buttons together with a special wire harness to support connectivity to a variety of 3rd party controller boards.

Each 2-in-1 button comes with two integrated switches to control configuration options of an arcade cabinet with the benefit of utilizing just one button hole and by doing so, saving valuable space on the control panel.

In addition, each 2-in-1 button contains a multi-color LED, based on the WS2812B type of LED, which can have up to 16,777,216 different colors. It can be controlled by any 3rd party WS2812B controller or alternatively with a huge variety of cheap microcontroller development boards (e.g. Arduino, Teensy etc.)

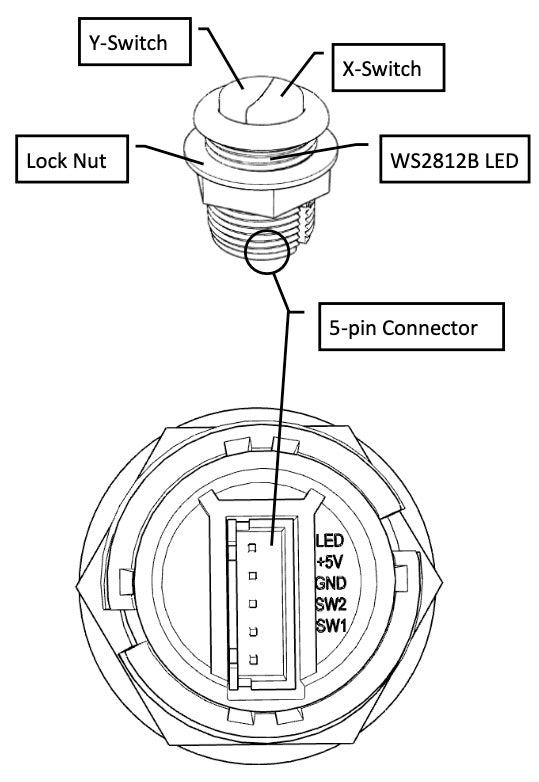

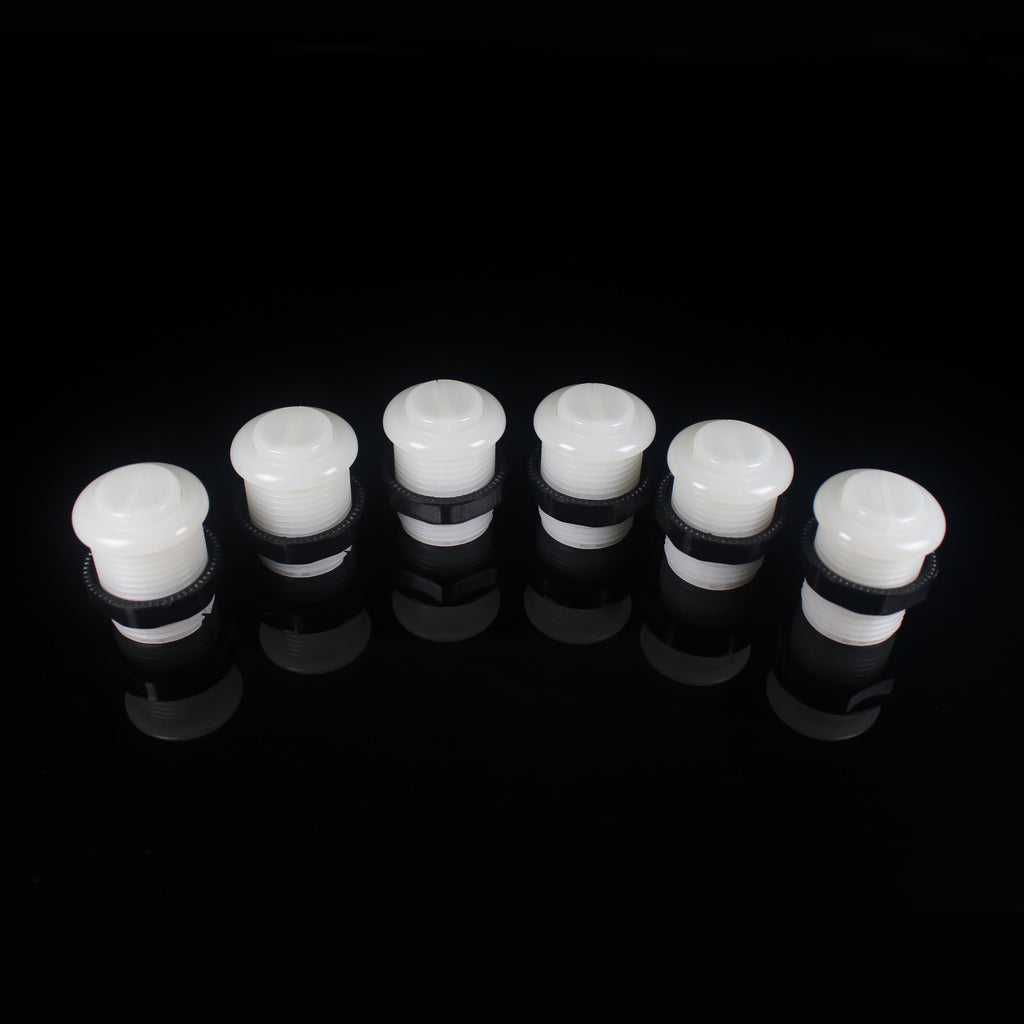

 2-in-1 Arcade Button





2-in1 Adapter Cable

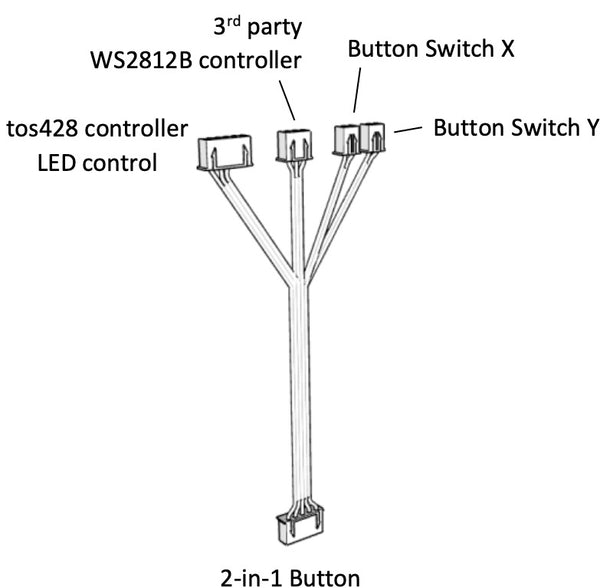

The special wire harness maps the 5-pin button connector to two standard 2-pin connectors that can be used with vendor-specific encoder boards.

It also comes with a 3-pin connector that can be used to power and control the internal WS2812B LED.

There is also a 5-pin connector that allows using the 2- in-1 button with the controller board of the TOS GRS Switchable 4-to-8-Way Restrictor Kit to control the LED.





 2-in-1 Adapter Cable - Details

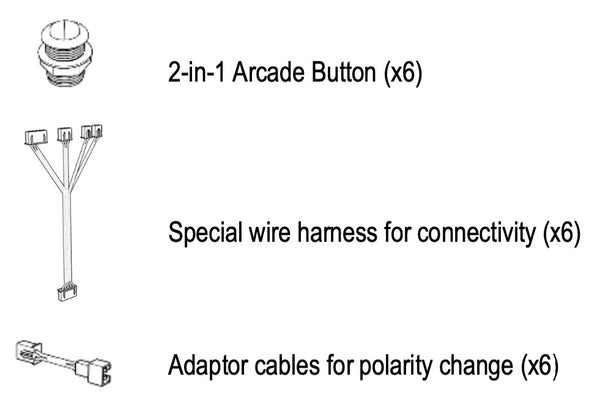

What is included?



Design by Stefan Burger



Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Ryan Kasper
awesome!

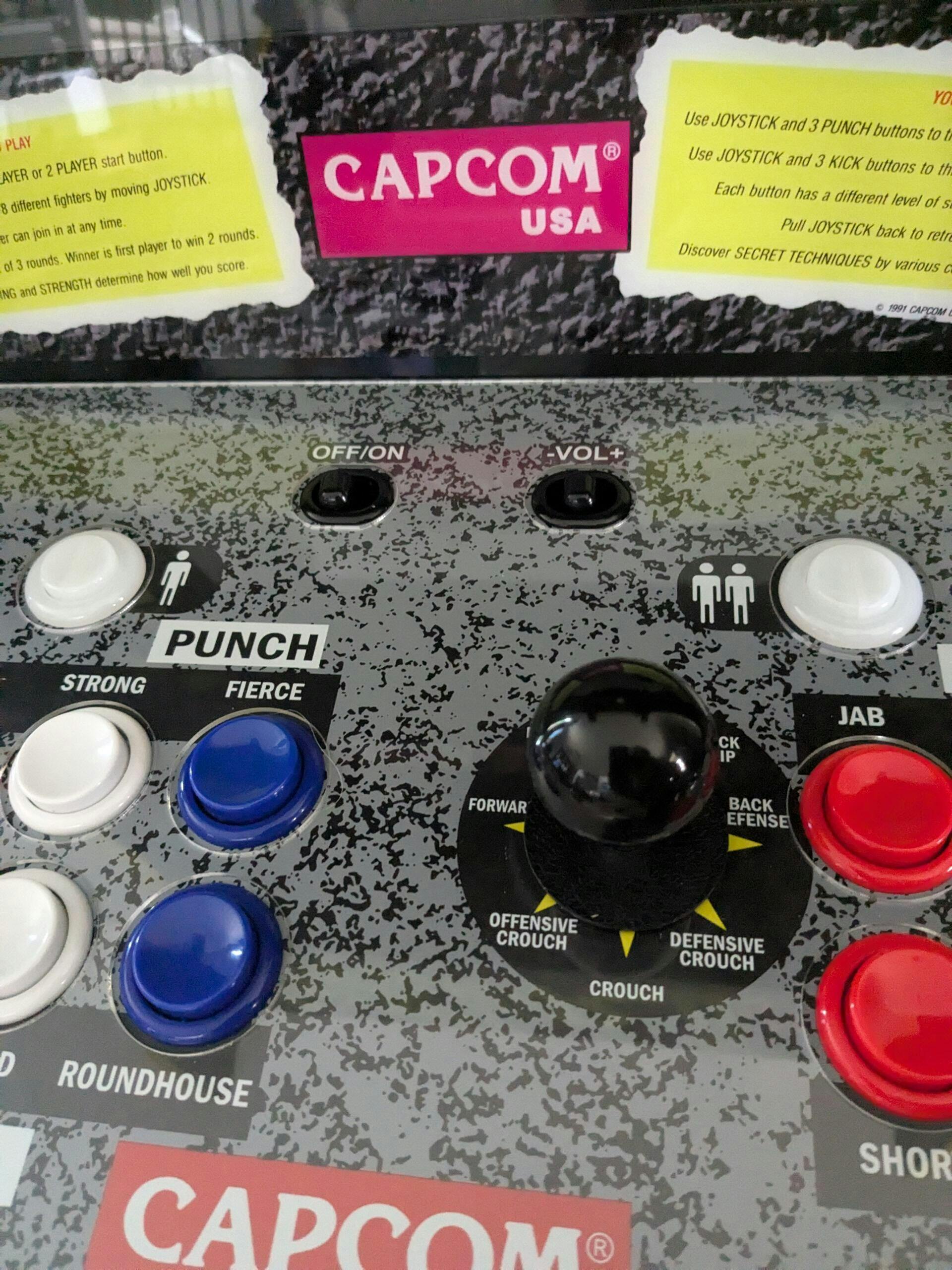

High quality item great for replacing a single utility button with a single item with dual utility. In my case I converted my cab to run off retropie, which needs a start as well as coin insert button. So simply replaced the start button (player one and player two) with this item that provides a start+select functionality. I have a twin USB encoder and needed the polarity switcher for the 2nd player side; so great that they even thought to include polarity switchers!
Great product

J
Jerry Pitkin
Quality

As for the buttons, they are quality piece of equipment, simplicity, and the board are great. The fact that they are two buttons in one slot is useful. I cannot say anything bad about the buttons themselves. Now for my use I wanted to utilize the buttons on a raspberry pi and split the buttons for individual use on the PI and my existing hardware. it comes with the wireing to do it to an extent by using the In-N-Out pins on the board. It was quite easy to set up a momentary switch on one of the buttons, but to be able to utilize the LED feature I was not easily able to configure so I decided not to Now, all that being said I am utilize these buttons in addition with the IKari GRS set that has pre-spade connectors for additional buttons so I removed the plastic connector on the 2 in 1 buttons to separate the wires for individual use. I was able to connect them up and secure them without any irreparable damage and they work great , I just need to figure out the best way to be able to use LEDs if I choose to
