Introduction
GRS Viper SBC is a single-board computer designed and manufactured explicitly for the DIY Arcade community. Here's a glimpse of the features:
- Seamless compatibility with the GRS iiRcade Ultimate system switcher, allowing iiRcade owners using the GRS iiRcade Ultimate Control Panel to switch between the iiRcade system and the Viper SBC rapidly.
- Plug-and-Play capability for the Sinden Lightgun and the GRS Sinden Ultimate Shotgun.
- Compatibility with the GRS Build-A-Cade (note: users will need to purchase an additional wiring harness kit for this feature).
- The unique feature of MTP Storage Device for swift access to Batocera files by simply connecting the Viper SBC to a PC through a single USB cable, rendering an experience similar to accessing photos on an Android device.
- A DSI port, A HDMI port, two USB 2.0 Type A ports, and one USB 3.0 Type-A port.
- DC inputs of 12V through a DC round head port and 5V through a USB Type C port.
- Firmware upgradability, 40-pin GPIO, and a modularized structure: Core PCB and Extension Module, ensuring future hardware upgradeability.
What is included?
- GRS Viper SBC x 1
- Wi-Fi antenna x 1
Specification:
DC Power: DC 12V.
Network: AP6212, supports WIFI 2.4G 802.11b/g/n.
Screen: Supports HDMI, MIPI-DSI interface.
GPIO: 40pin interface.
USB: USB2.0, USB3.0 for connecting multimedia devices.
Micro HDMI: For connecting displays.
TYPE-C/OTG: Can be used for USB2.0, OTG, programming, and power supply.
Headphone: Supports four-section headphones with MIC function.
SD Card: External SD card can be connected.
System Framework:
Core Module
Hardware |
Spec |
Note |
Dimension(L*W*H) |
64*49*4(mm) |
Tolerance +-0.1mm |
CPU |

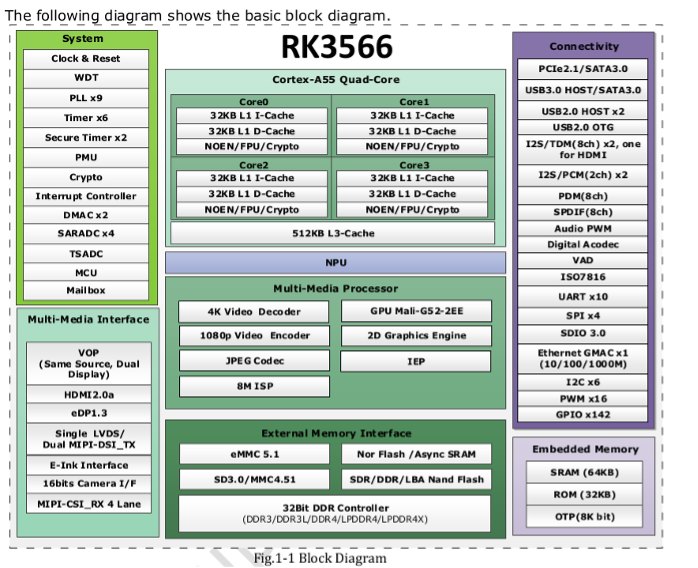

RK3566 |
/ |
RAM |
2G |
|
ROM(EMMC) |
32G |
|
Internet |
AP6212;Support 802.11B/G/N |
AP6255 Option |
Functional buttons |
Reset、Maskrom |
Configuration use |
External Antenna |
IPX Socket |
For WIFI antenna |
LED |
Heart beat |
For display status |
Extension Module V1
Hardware |
Spec |
Note |
Dimension(L*W*H) |
94*66*7(mm) |
Tolerance +-0.1mm |
Functional button |
Firmware Upgrade Button |
For Firmware Upgrade |
LED |
Power LED |
/ |
Main Interface
Main Interface |
Power |
DC 12V |
Display |
MIPI-DSI,Up to 4K(4096*2160) |
|
GPIO |
GPIO Definition refer to Sec.6 |
|
USB2.0 USB3.0 |
For connecting to multimedia devices |
|
Micro HDMI |
For connecting displays |
|
TYPE-C/OTG |
USB2.0/OTG/Firmware Upgrade/Power Source |
|
Headphone Jack |
Supports four-section headphones with MIC function |
|
SD Card Slot |
For connecting SD card. |
